Videre - Color LCD Controller with Cortex-M0

The Videre LCD Controller shield provides a color backlit display for the Arduino form factor, or for standalone use. The Videre includes a PSoC4 microcontroller, which is based on the ARM Cortex-M0 processor and includes programmable analog and digital blocks. Like most PatternAgents shield patterns you can use a set of configuration jumpers to control Videre from either the UART (CLI), I2C/Two-Wire Bus, or the SPI interface - giving you the maximum flexibility to configure your other shields without I/O conflicts.

Videre Features:

  • 16 Character x 2 Line Display
  • Color LED Backlighting
  • Selectable 3.3Volt or 5.0Volt Operation
  • UART, I2C, SPI Interface Selectable
  • Use as Arduino Shield or as a Standalone Display
  • CapSense Slider Bar (optional)

About Videre:

"Videre" means "to see" in italian, and it is the way to see what is going on inside your embedded projects. With it's powerful ARM Cortex-M0 internal processor, it can also be used as a standalone processor with included display, or it can be connected to any Arduino form factor processor, such as the PSoC Pioneer, Maple, or Freescale Freedom.

Videre Application Examples:

  • Standalone Display and Processor
  • Display/GUI controller for Arduino
  • Relay control (watering, pump control)

Videre

Videre Model
Videre
$12.95

Tweet about Videre

Videre Repository

Videre Github
Videre Wiki
Videre Issues

Videre Downloads

Videre ZIPball
Videre TARball

Videre Images

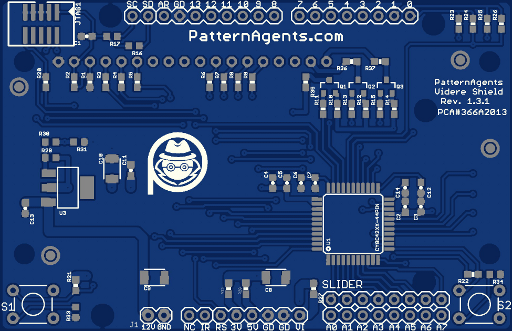

Videre Top View

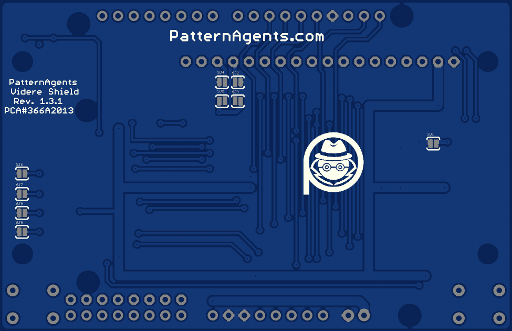

Videre Bottom View

Videre Licensing

Creative Commons License
The Videre Project by PatternAgents, LLC is available and licensed under a Creative Commons CC BY-NC-SA 4.0 International License. Commercial Licenses are also available for Videre.
